How do I use a punchdown tool correctly?

Dress the conductor into the correct IDC position, hold the tool square to the terminal and press straight down until the termination action completes. On a cutting position, make sure the cutter is towards the waste end first.

Do not twist the tool while it is in the contact and do not use it like a hammer. Let the mechanism and blade do the work.

Answered by

Dave

Practical Support · Data Cabinets Direct

Using the tool 2 relevant products

Continue exploring This answer is part of the wider Help & Knowledge system.

Punchdown Tools → All Network Cabling help → All Help & Knowledge →

More from Using the tool

Explore related questions about using the tool.

Which way round should the cutting side of the tool face? How much of the twisted pair should I untwist before termination? What should I do if the excess wire does not cut off cleanly? Can I punch the same conductor down repeatedly if I am not happy with it?

Browse all Punchdown Tools help →

Products this answer covers

This answer applies to 2 products in the Punchdown Tools range.

Asked about this product

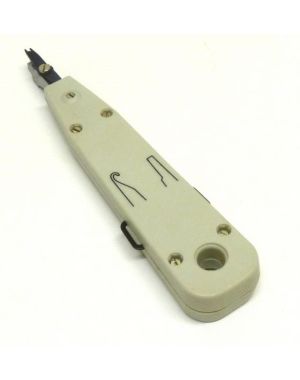

Original product context Krone IDC Punchdown Tool SKU: DLX-C-IW2A-TOOL-C2G View product →

This answer also applies to

This answer also covers the following product.

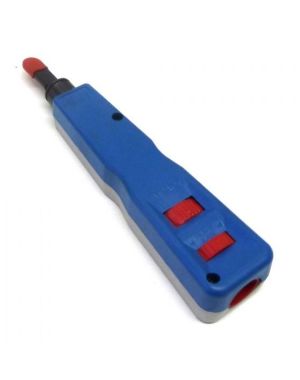

110 IDC Punchdown Tool SKU: DLX-C-110TOOL-N/A View product →
