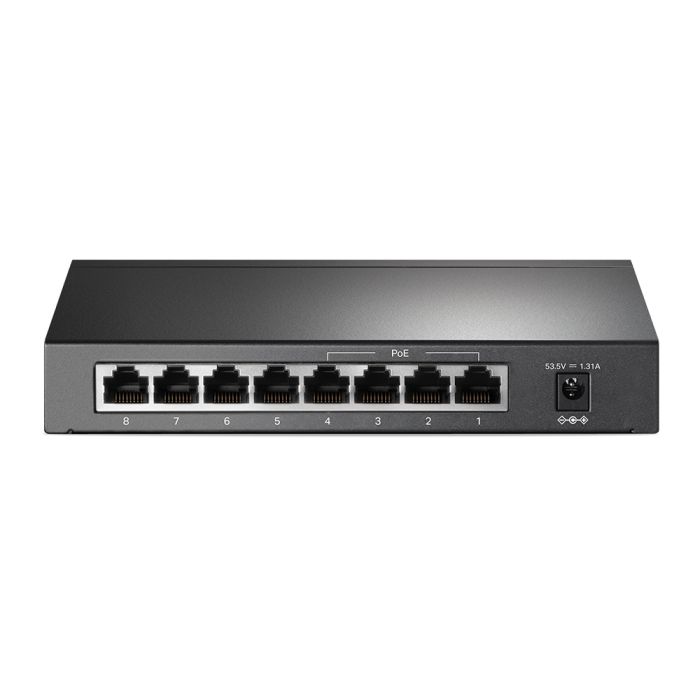

TP-Link TL-SG1008P 8-Port Gigabit PoE+ Switch

An Ethernet switch gives several wired devices access to the same local network and forwards traffic between the ports that need it.

In a typical small installation, one port leads back towards the router and the others serve computers, access points, cameras, printers or the rack cabling. It expands the wired side of the network; it does not take over the router's job.

It means the switch does not have the normal management interface of a managed switch. There is no web console for configuring VLANs, per-port settings, SNMP or similar network-management functions.

The switch handles ordinary Ethernet forwarding automatically. Some models may still include automatic functions or simple physical mode switches, but that does not make them managed switches.

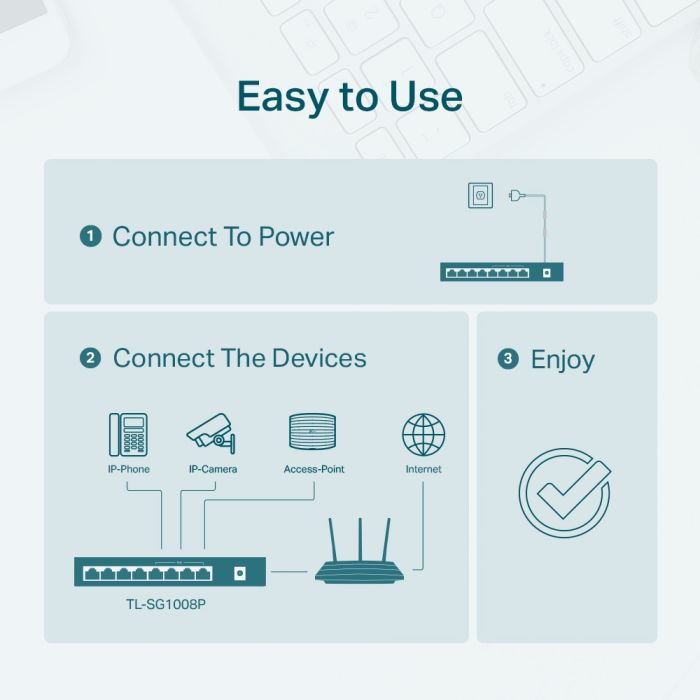

No. Power it up, connect a port back to the existing network, then plug in the devices you want to use. The ports negotiate their links automatically.

No. The switch expands Ethernet connectivity within an existing network. It does not normally provide routing, Wi-Fi, Internet access or DHCP address allocation.

A router or another suitable network device still provides the gateway to the Internet and, in most small networks, the DHCP service that assigns addresses.

Start with four things: how many wired ports you need, whether any devices need PoE, whether 100Mbps is enough, and whether the switch must mount directly in a 19-inch rack.

The Newlink NLHUB-08FE is the 10/100 model. The remaining switches in this range are Gigabit. The TL-SG1008P adds four PoE+ ports, while the TL-SG1016 and TL-SG1024 are the 16- and 24-port 19-inch rackmount choices. Leave a little room for growth, but there is no prize for buying twenty unused ports simply because they exist.

Yes. The switch models currently in this range are fanless, so there is no cooling-fan noise from the switch itself.

That is not the same as an absolute guarantee of silence from every power adapter or item of connected equipment, but the switches do not contain a fan.

Start with the simple things. Make sure both devices are powered, reseat the plugs, try another known-good patch lead and try another switch port.

If the cabling is through a patch panel or wall outlet, bypass that run temporarily if you can. A missing link light is usually a physical link or negotiation problem, so prove the short direct connection before chasing anything clever.

A Gigabit port will negotiate down when the connected device, cable or intervening cabling cannot establish a 1000Mbps link. Check that the device itself supports Gigabit Ethernet, leave speed and duplex on automatic negotiation unless there is a specific reason not to, and test with a known-good Cat5e or better cable.

If a structured-cabling run is involved, test or bypass that run as well. A Gigabit switch cannot force a 1Gbps link through an endpoint or cable path that only supports 100Mbps.

Yes, but not by bolting it straight to 19-inch rails. The compact models are desktop-style units. Put one on a suitable rack shelf if you want it to live inside a cabinet.

Leave the cables and ventilation comfortable rather than inventing rack ears for a box that was never given any.

No. These switches use ordinary auto-negotiating Ethernet ports, and any suitable port can be used for the link back to a router or another switch.

Whichever port you use for that connection is then occupied by the uplink rather than an end device.

Yes. Connecting one switch to another with a normal Ethernet link is entirely ordinary and is useful when you need more ports in another part of the network.

What you should avoid is accidentally creating two or more parallel paths between unmanaged switches. That can form a network loop and turn a perfectly quiet Ethernet network into a rather enthusiastic packet carousel.

Yes. Use a short RJ45 patch lead between the required patch-panel port and a switch port. The patch panel is passive; the switch provides the active network connection.

Use a normal RJ45 Ethernet patch lead of the appropriate category. Cat5e is suitable for ordinary Gigabit Ethernet, and Cat6 is also fine.

If the switch is connected through structured cabling, use patch leads at the equipment ends rather than treating solid installation cable as a flexible equipment cord.

Yes. Both Cat5e and Cat6 can be used with these RJ45 Ethernet ports. The Gigabit models support 1000BASE-T over suitable Cat5e or better cabling, while the Fast Ethernet model will simply operate within its 10/100Mbps capability.

The speed of the complete connection is determined by the equipment and cabling at both ends, not by the category name printed on one patch lead.

It means each port automatically agrees a supported Ethernet speed and duplex mode with the device connected to it. On the Gigabit models that can be 10, 100 or 1000Mbps; on the NLHUB-08FE it is 10 or 100Mbps.

Auto-negotiation improves compatibility, but it cannot create a speed that one end of the connection does not support.

Auto MDI/MDIX lets the Ethernet port adapt automatically to the transmit and receive wiring presented by the connected device. In normal use, you therefore do not need to choose a special crossover cable when connecting these switches to ordinary Ethernet equipment.

Yes. This model provides 10/100/1000Mbps Ethernet ports, so a compatible device and suitable cabling can establish a 1Gbps link.

That is the link speed of the Ethernet port, not a promise that an Internet connection or every data transfer will run at 1Gbps.

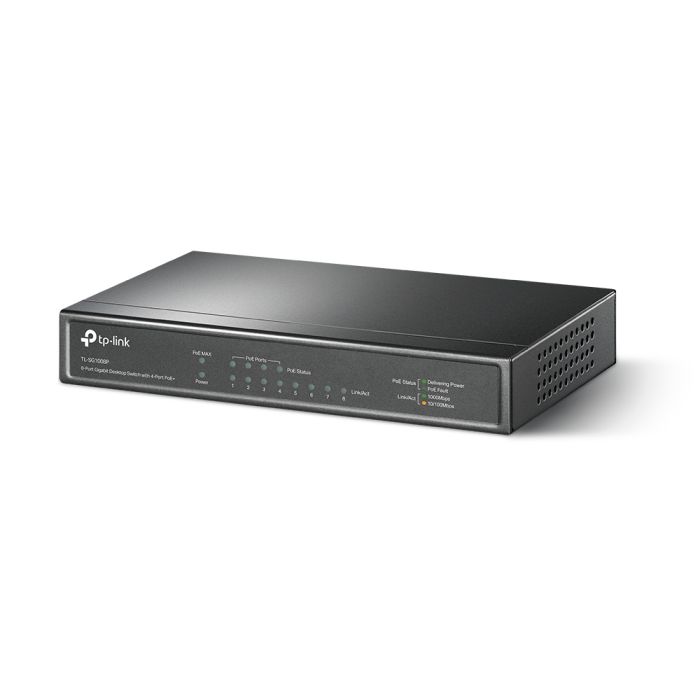

Yes. The TL-SG1008P has eight Gigabit Ethernet ports, with ports 1–4 providing standards-based PoE+. Those four ports support IEEE 802.3af and IEEE 802.3at powered devices.

The TL-SG1008P has a total PoE budget of 64W across ports 1–4. An individual PoE+ port can supply up to 30W to a compatible powered device.

The 30W figure is a per-port maximum, not four separate 30W supplies that can all be used simultaneously. The combined PoE demand still has to remain within the 64W total budget.

Yes. The Gigabit models support 10, 100 and 1000Mbps auto-negotiation. A 100Mbps device can therefore connect at 100Mbps while other ports continue to negotiate their own supported speeds independently.

Not simply because a switch has been added. It gives you more wired connections; your Internet speed is still constrained by the broadband service, router, connected devices and the links between them.

Replacing an old 100Mbps switch with a Gigabit model can remove a local 100Mbps bottleneck, which may make a real difference to file transfers or a faster Internet service. The switch can remove a restriction; it cannot manufacture bandwidth upstream.

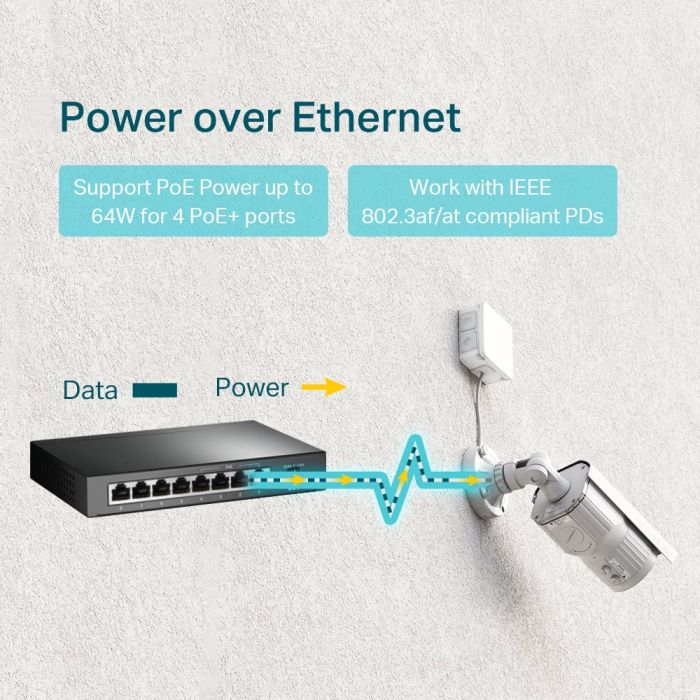

It is intended for IEEE 802.3af or 802.3at PoE devices such as compatible wireless access points, IP cameras and IP telephones. The device still has to be within the available per-port and total PoE power limits.

Check the powered device's PoE standard and power requirement rather than assuming that any product with an Ethernet socket can be powered through it.

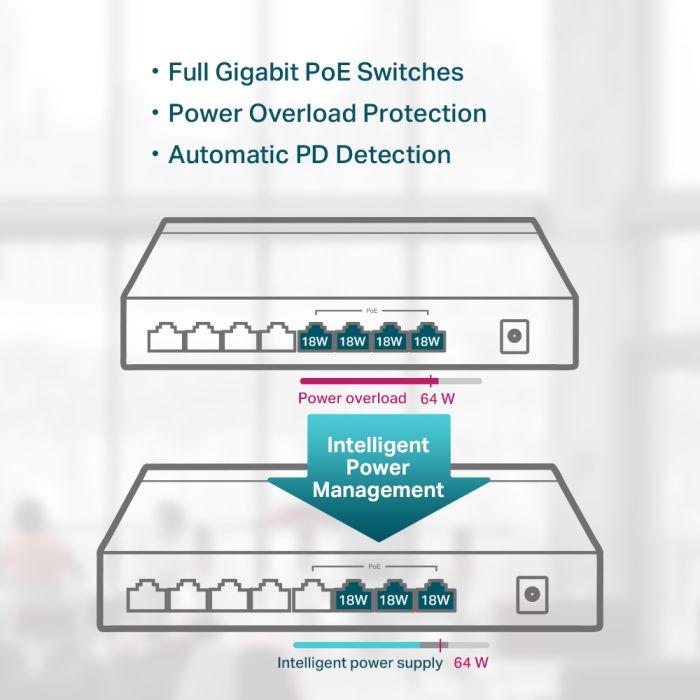

The TL-SG1008P uses intelligent power management. If the combined PoE demand exceeds the available budget, power to lower-priority PoE ports can be removed so that higher-priority powered devices remain supplied.

The practical solution is to plan the connected devices so their expected requirements fit comfortably within the 64W budget rather than relying on overload management as normal operation.

Yes. The PoE ports use IEEE 802.3af/at detection and can also operate as ordinary Gigabit Ethernet ports. A normal non-PoE Ethernet device can therefore be connected without being deliberately fed PoE power.

Do not assume so. The TL-SG1008P provides standards-based IEEE 802.3af/at PoE, which is different from proprietary or fixed-voltage passive PoE arrangements.

If a device specifically requires passive PoE, check its power specification and use the correct power source rather than treating every form of power-over-Ethernet cabling as interchangeable.
