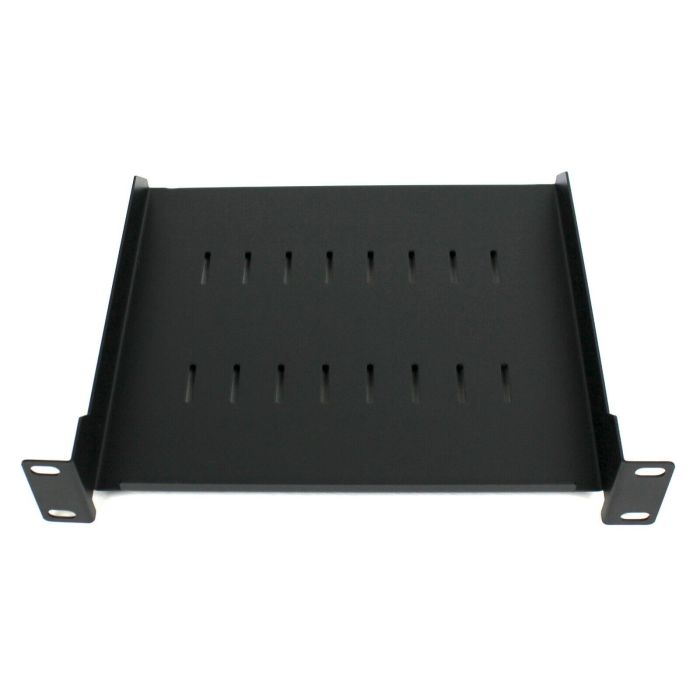

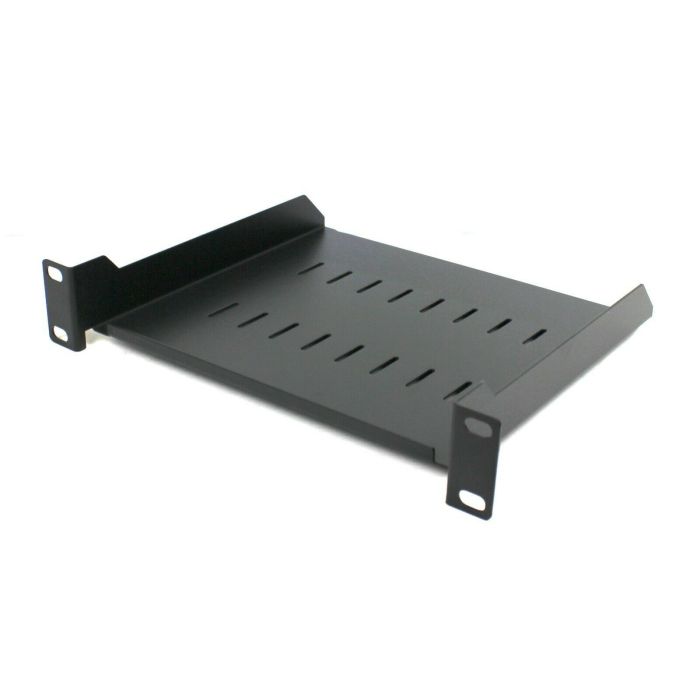

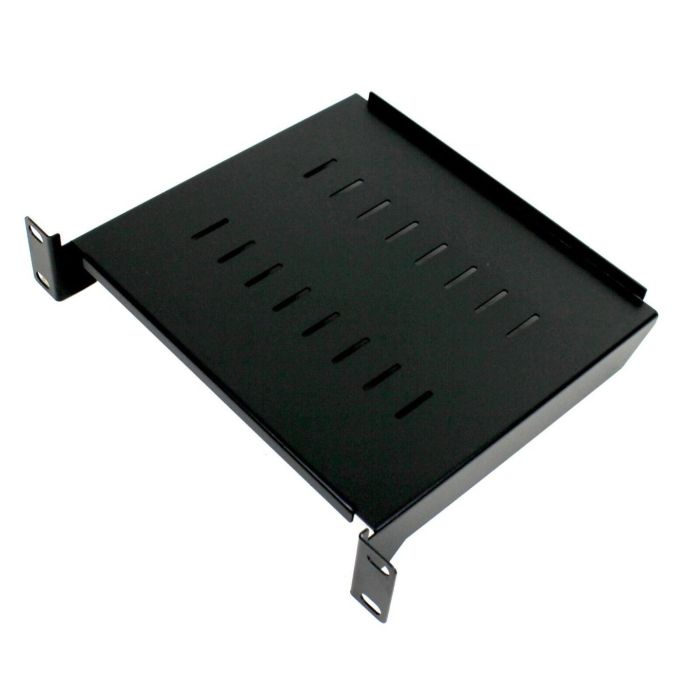

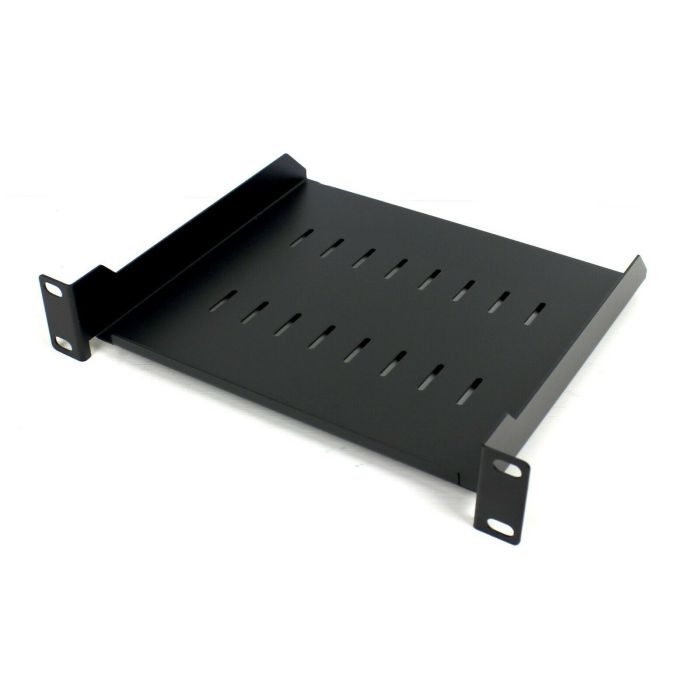

10" 200mm Universal Front-Mount Shelf

It gives equipment without its own rack ears a proper platform inside the rack.

Small switches, routers, media converters and similar desktop hardware are common examples.

It is a useful bridge between "rack-mounted" and "happens to live in the rack": the device remains an ordinary desktop unit, while the shelf provides the rack interface for it.

It means the shelf is supported from the front rack rails only.

It uses four front mounting points and does not require a second set of supports at the rear.

No. That is one of the main reasons for using the shelf.

Put the non-rackmount device on the platform and mount the shelf to the rack.

They use the same basic 200mm front-mount design, but are made for different rack widths.

The 10" version fits a 10" rack and has a narrower usable platform; the 19" version fits a standard 19" rack and provides substantially more usable width.

No. It is a fixed shelf.

If you need something that pulls forward for access, use a sliding shelf or drawer designed to do that job.

It is made from 1.5mm steel with a black powder-coated finish.

The folded front, rear and side sections also stiffen the platform, so the shape is doing useful structural work rather than being decorative sheet-metal origami.

The usable platform is approximately 206mm wide by 190mm deep.

Overall, the shelf is approximately 254mm wide, 199mm deep and 44mm high.

The 200mm figure is the nominal shelf depth: the complete product is actually about 199mm deep.

Once the folds and platform geometry are allowed for, the flat usable surface is about 190mm.

It is a small but important wrinkle when you are measuring a device rather than merely choosing a shelf by its catalogue name.

Yes. The platform does not have an upward rear wall, so a deeper device can extend beyond it.

What matters is whether the device remains properly supported and stable, and whether the cabinet still has enough depth for the device, connectors and cable bends.

A little rear overhang can be perfectly sensible; turning a shallow shelf into a diving board for a large, rear-heavy appliance is rather less so.

No. The sides of the platform are folded upwards, so the equipment has to fit between the side returns.

Check the usable width rather than the overall rack width when measuring your device.

Both 6mm folds add stiffness to the platform. The front edge turns upward, while the rear edge turns downward.

The front upstand also gives a small amount of resistance to something sliding forwards; the rear downturn leaves the back of the platform open for equipment that extends beyond the shelf.

Neither fold should be treated as a positive equipment retention system.

Not necessarily. The shelf itself occupies 1U, but the equipment sitting on the platform still has its own height and may project into the rack space above.

That distinction is easy to miss when planning a small cabinet: the shelf has not somehow made the router disappear into its 1U mounting envelope.

Allow the vertical clearance the actual device needs.

Yes. The shelf itself stays within its 1U mounting space and can sit directly next to correctly mounted equipment.

You still need enough space above the platform for whatever you put on the shelf.

The published maximum shelf load is 15kg for both the 10" and 19" versions.

The whole shelf. If you put several things on it, their combined weight needs to stay within 15kg.

Yes in practical terms, because a cantilever is a lever, not sorcery.

We have a published 15kg maximum load but no separate manufacturer figure for a load concentrated at the extreme rear edge.

I would keep a substantial item stably supported with its centre of gravity reasonably close to the rack rails rather than deliberately hanging the bulk of the weight as far back as possible.

If the installation approaches the load limit and is markedly rear-heavy, a deeper or rear-supported arrangement is the more convincing solution.

Potentially, but check the particular UPS rather than treating "UPS" as a size of equipment.

It needs to be within the 15kg shelf rating, fit stably on the platform and be allowed by its manufacturer to operate in that orientation.

Many UPS units are dense, heavy things and larger rack models have proper rails or support hardware for good reason.

If a UPS is already flirting with the shelf limit, I would use the support system intended for it rather than constructing a makeshift compromise.

I would make sure the device is supported in the way its case and feet are designed to carry its weight.

Rear overhang is acceptable in itself, but a device whose rear feet are floating beyond the platform may not be stably supported.

Check the actual base and foot positions rather than judging only from the outer case dimensions.

Yes, if they fit properly, stay stable and their combined weight remains within 15kg.

Do not block the ventilation requirements of one device by piling another one on top of it.

No. The shelf has a 15kg maximum load, but the rack rails, mounting points and fixings also need to be sound and suitable for the installation.

A load rating for the shelf cannot certify the cabinet it has been bolted into.

Yes. The front-mount shelves include four cage nuts, four rack screws and four washers.

The supplied cage nuts and rack screws are M6.

Yes. Use all four mounting points.

It is a cantilever shelf carrying its load from the front rails, so leaving half the fixings in the packet is not an improvement.

No. It is deliberately a front-mounted cantilever shelf and has no rear-support provision.

That can look slightly implausible the first time you meet one — the back appears to be floating in mid-air — but the front rail and four fixings are the intended support.

Rear-supported shelves are a different design for deeper or heavier duties.

Yes, provided the rack is the correct 10" or 19" format and its rails are suitable for the intended load.

A 2-post rack is not a deficiency here: this particular shelf was designed to derive its support from one rail plane, so adding two imaginary rear posts would solve no problem of its own.

Yes. If the rack layout calls for a rear-mounted platform, it can be fitted to the rear rails.

Check that the equipment, cables and cabinet doors still have the clearance they need.

You could jerry-rig it that way and it would still give you a metal platform, but I would not recommend it.

The shelf was designed with the side returns and front upstand in their normal orientation.

Mount it the right way up unless you have an unusual problem and understand the compromise you are making.

Its natural habitat is small equipment which was never given rack ears: desktop switches and routers, media converters, modems, compact computers and similar hardware.

The useful test is not the label on the box but the mundane trio of dimensions, weight and ventilation.

If those work, the shelf is a straightforward way of admitting desktop hardware into a rack without inventing a bespoke mounting contrivance for every little device.

Yes. The rear edge turns down rather than up, so there is no rear upstand blocking the route.

Allow enough cabinet depth for the connector body and a sensible cable bend, especially before closing the rear door.

No. The 6mm upstand gives a little resistance to forward movement, but it is not a positive retention system.

If the rack is going to be transported or jolted around, secure the equipment appropriately rather than relying on the lip.

Yes if the particular NAS fits between the side returns, is stably supported, remains within the 15kg load limit and has the ventilation clearance specified by its manufacturer.

A deeper NAS may overhang the rear if it remains properly supported.

Yes. Small computers and similar non-rackmount devices are exactly the sort of thing a universal shelf is handy for.

Just keep them stable and do not bury their ventilation openings.

Physically, perhaps, provided it fits and stays within the load rating.

But if the manufacturer has already given the device proper rack ears or rails, I would normally use them.

The shelf is at its most useful when solving the absence of rack mounting; putting a genuinely rack-mountable device on one can consume extra space and turn an already solved problem into a more cumbersome arrangement.

You can sometimes do so, but I would not turn the shelf into a precarious cairn of routers merely because the combined weight is under 15kg.

Each device still needs a stable footing, cable access and whatever ventilation its manufacturer requires.

Two items designed to stack neatly may be perfectly reasonable; a procession of mismatched boxes leaning on one another is a different proposition.

No. It is fixed once mounted.

For equipment that needs frequent rear access, consider whether a sliding shelf, different rack position or simply leaving sensible service access would be better.

Trying to use a fixed cantilever shelf as a drawer with ambitions will become tiresome fairly quickly.

Yes. The platform has two rows of ventilation slots to provide a passive path for air through the shelf.

No. They give air somewhere to pass through the platform; they do not manufacture airflow.

The device may breathe through its sides, front, rear or underside, and the cabinet itself has its own air path.

A vented shelf is helpful because it avoids presenting an entirely solid floor beneath the equipment, but it cannot rescue an otherwise convoluted cooling arrangement.

The 10" shelf has two rows of eight slots.

Each slot is approximately 22mm long by 3mm wide.

Not by itself. A device sitting on the shelf will naturally cover some of the platform.

The important thing is not to block the device's own required air inlets or exhausts.

It can. The slots give air a route through the steel platform, which is preferable to putting an underside-vented device on an entirely solid sheet.

The device still needs whatever clearance its feet or manufacturer provide beneath the case.

Vent holes in the shelf are an opportunity for airflow, not a substitute for the gap the equipment itself requires.

Not just because it is on a shelf.

Leave whatever clearance the equipment actually requires for its height and ventilation.

If the manufacturer says it needs space above it, give it space; otherwise there is no reason to donate an empty U to the rack out of habit.

It can avoid obstructing an airflow path through the shelf area, but that is not the same as cooling the cabinet.

Fans, vents, equipment orientation and the route from intake to exhaust still determine what the air actually does.

The shelf is best regarded as co-operative rather than heroic: it has holes in the right places and tries not to get in the way.
