M6 Standard Rack Fixing Pack – Black – 10 Sets

It provides a removable M6 threaded fixing point in a compatible square-hole rack rail. The cage nut clips into the rail, then the rack screw passes through the equipment mounting ear and threads into the nut.

That is the usual arrangement for mounting patch panels, switches, PDUs, shelves and other rack equipment when the rail itself is not threaded.

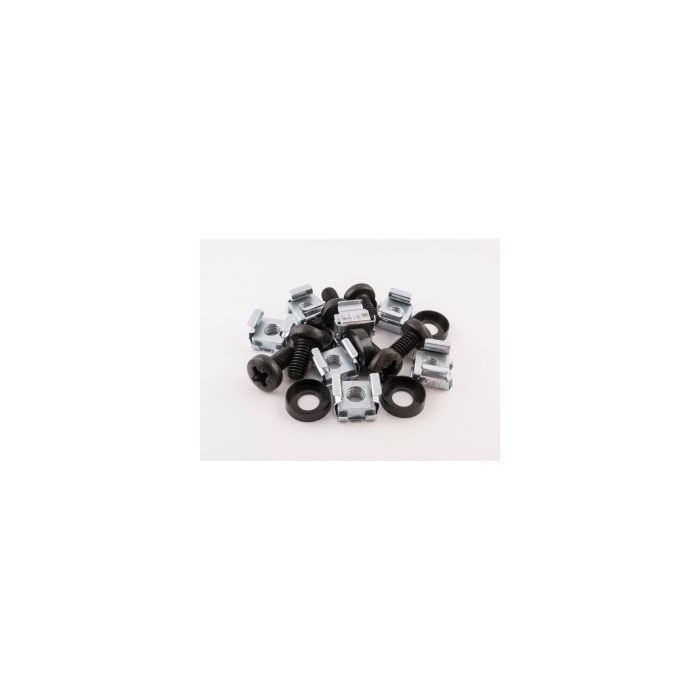

Each pack contains 10 complete rack fixing sets: 10 M6 cage nuts, 10 matching M6 rack screws and 10 washers.

M6 identifies the metric screw thread size used by the rack screw and cage nut. It is not the size of the square hole in the rack rail and it is not a rack-unit measurement.

Both the Standard and Premium fixing sets use the same M6 thread system and their screws and cage nuts have been cross-checked for interchangeability.

Yes. Both versions use the same M6 thread system and fit the same compatible square-hole rack rails. We have also physically cross-tested the screws and nuts between the two versions and they thread together correctly.

Premium changes the execution of the fixing rather than introducing a different mounting standard.

No. They are intended for compatible square-hole mounting rails that use cage nuts. Some racks have pre-threaded round holes or use a different fixing system, in which case an M6 cage nut is not the correct part.

Check the rail itself rather than assuming that every 19-inch rack uses the same fixing method.

The inner nut is deliberately allowed a small amount of movement so the screw can find and align with the thread even when the equipment ear and rack hole are not sitting with mathematical perfection.

A floating nut is useful; a nut wandering about like a loose shopping trolley is less so. The Premium version retains that alignment freedom with noticeably less movement than the Standard version.

Fit the cage nut from the inside of the mounting rail so the threaded nut sits behind the rail. Hook one retaining ear into the square opening, compress the other ear and let it spring into the opposite side.

Make sure both ears are fully engaged before mounting the equipment.

The threaded nut sits behind the mounting rail and the rack screw approaches it from the equipment side. The spring cage clips through the square opening from behind.

If the nut is sitting on the front face of the rail, you have found an inventive but incorrect arrangement.

No. Bring the equipment ear into alignment, start the screw by hand and make sure the thread engages cleanly before tightening it with a tool.

If it immediately feels wrong, stop and realign it. Cross-threading an M6 fixing is not improved by greater enthusiasm.

Use the number of mounting points specified by the equipment manufacturer. Many lightweight 1U products use four front fixings, but that is not a universal load rule.

The number of cage nuts does not determine whether a heavy device can be safely supported only from its front ears. Servers, UPS units and other heavy equipment may require rails, shelves or rear support.

No. These can be fitted and removed by hand, and both current designs were easy to insert into the P Series rail during our checks.

A cage-nut tool can still be worthwhile when fitting a large number or when access is awkward, especially if you value your fingertips.

Support the cage from behind the rail, compress one retaining ear clear of the square opening and ease that side out, then release the other side. A cage-nut tool or small suitable hand tool can help where access is tight.

Do not simply lever hard against the painted rack face and hope the finish loses the argument.

Tighten them enough to hold the equipment securely and keep the mounting ear flat against the rail, but do not overtighten them. Excessive torque can damage the screw, cage nut, equipment ear or rack finish.

For equipment with a specified mounting torque, follow the equipment manufacturer's instruction.

Use the supplied washer unless the equipment manufacturer specifies another fixing arrangement. It sits between the screw head and equipment mounting ear, helping spread the contact and keeping the screw head from bearing directly on the equipment finish.

The Premium washer is retained on the screw, while the Standard washer is a separate loose plastic part.

Usually, yes, if the cage still grips the rail properly and the M6 thread is undamaged. Inspect the spring ears and thread before reusing it.

Replace any fixing that is distorted, badly worn or rough enough that the screw no longer starts and turns normally.

Both are compatible M6 rack fixing sets for suitable square-hole rails. Standard is the economical conventional option with a 14mm screw and separate plastic washer.

Premium uses the fixing style supplied with our P Series cabinets. It has a 16mm screw, retained metal washer, cleaner screw finish, a wider lead-in chamfer on the nut and less movement in the floating nut. In our hands-on comparison the Premium screw also engaged noticeably more smoothly.

The Standard set uses a separate loose plastic washer with a flat-seating rack screw. It is a conventional, economical arrangement and works with the matching M6 cage nut supplied in the pack.

Yes. The screws and cage nuts are mechanically interchangeable and both versions fit the P Series square-hole mounting rails we tested.

There is no technical need for every fixing in a cabinet to come from the same range, although using one style consistently can make later maintenance a little tidier.

Stop tightening it. Back the screw out, check the alignment and inspect both threads for damage or contamination. Start it again by hand and make sure it turns freely before using a screwdriver.

If the thread remains rough or damaged, replace the fixing rather than forcing it.

A little movement is normal because the inner nut floats for alignment. If it is moving excessively, make sure the cage is fully seated and the equipment ear is aligned with the square hole before applying pressure to the screw.

Start the screw by hand. If you attack a misaligned floating nut with a powered driver, the nut is likely to win the argument in a rather destructive fashion.

First make sure the rail actually uses compatible square cage-nut holes and that you are inserting the cage from the correct side. Hook one retaining ear in first, then compress the opposite ear into the opening.

Do not flatten or reshape the cage simply to make it fit an incompatible rail.

The spring cage contacts the edges of the square mounting hole, so some local marking can occur during repeated fitting and removal. Install and remove it carefully rather than levering aggressively against the visible front face of the rail.

The washer also helps keep the rotating screw head away from the equipment face while tightening.

No. Colour is a finish choice within each range; the fixing standard remains M6. Choose the finish that suits the rack or equipment appearance.

Black fixings tend to blend into black rack ears and cabinet rails, which can give the front of a finished rack a more uniform appearance. The mechanical function is the same as the corresponding silver version.
