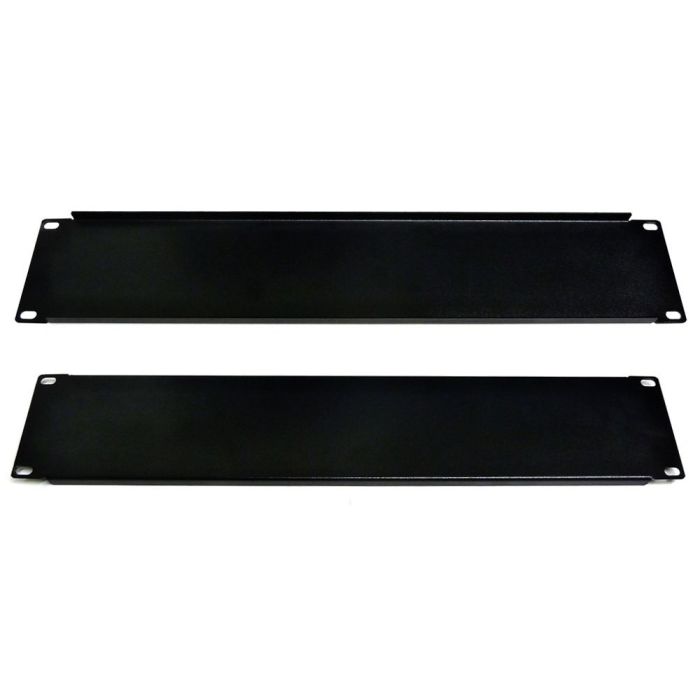

19" 2U Blanking Plate

It covers unused rack space with a solid panel.

That can make the rack tidier, reduce direct access to cabling behind the opening and, where the rack has a deliberate airflow scheme, help prevent air taking an unhelpful shortcut through an empty U.

It is deliberately unglamorous hardware, but it can do several useful jobs at once.

They are completely solid apart from the mounting slots.

There are no ventilation holes or perforations in the panel.

No. Appearance is certainly one reason to use one, but a solid blank can also form part of an airflow strategy and prevent casual access through an empty rack opening.

Which of those matters most depends on the cabinet.

A piece of metal does not acquire a single grand purpose merely because it has been screwed into a rack.

They are black powder-coated steel.

The 19" plates use 1.2mm sheet steel, while the 10" 1U plate is made from 1.4mm steel.

No. The return edges are folded and the exposed edges are finished so you are not left handling a raw sharp sheet-metal edge.

It is the amount of vertical rack space the panel covers. A 1U blank covers one rack unit, a 2U blank covers two and a 3U blank covers three.

Think of U as the rack's vertical real estate rather than a measurement of the plate's depth or width.

No. They are made for different rack widths.

Use the 10" plate in a 10" rack and the 19" versions in a standard 19" rack.

All three 19" versions are approximately 485mm wide and 11mm deep.

The 1U version is 45mm high, the 2U version 90mm and the 3U version 134mm.

Yes, provided the rack is the correct 10" or 19" format and has suitable mounting points.

The panel only needs one mounting plane; it does not need rear support.

Yes. Mechanically there is no difficulty in mounting one on the rear rails.

Whether that is useful is another question: front blanking and rear blanking can have quite different consequences for airflow, so I would fit it there because the rack layout calls for it, not simply because an empty hole exists.

Yes.

The blanking plates stay within their allocated rack space, so correctly mounted equipment or another blanking plate can sit directly above or below.

They can, but not by producing any cooling of their own.

In a rack with controlled front-to-back airflow, closing unused openings can stop warm exhaust air recirculating towards equipment intakes.

The plate is a barrier, not a refrigerator; its usefulness depends on what the air was otherwise going to do.

A common reason is to close unused front rack spaces so hot exhaust air cannot easily recirculate through those gaps towards the cold side of the rack.

That helps preserve the intended separation between equipment intake and exhaust air.

Not automatically. In a properly managed data-centre airflow arrangement, blanking unused front spaces is usually very sensible.

In a small passively ventilated cabinet, however, an open space may actually be part of the available air path.

Blanking every U on principle can become a slightly overenthusiastic exercise in tidiness.

Yes, in some layouts. If a small cabinet relies on passive airflow through a vented front door or open rack spaces, covering all of those spaces can reduce the free path available to incoming air.

A little wall cabinet is not a miniature data centre merely because it has rack rails, so its ventilation needs to be considered on its own terms.

No. They are solid panels and have no passive ventilation openings.

Air must travel around them rather than through them.

Not necessarily. Overheating has an airflow cause that needs identifying: intake temperature, exhaust recirculation, fan direction, blocked vents or simply insufficient air movement.

A blanking panel can be part of the remedy where an unwanted opening is allowing recirculation, but an overheating device is not merely a vacancy in search of a sheet of steel.

No. They solve different airflow problems.

A solid blank is useful when you deliberately want to stop air crossing an unused rack opening. A ventilated panel makes sense when that opening is supposed to admit or exhaust air.

Choosing between them without considering the airflow path is rather like choosing between an open and closed window without first asking whether the room is too hot.

Yes, if that opening is genuinely useful to the cabinet's ventilation.

Do it deliberately, though. An open U used as an air path is one thing; a random gap left because nobody fitted the blank is another.

Not necessarily. In a conventional front-intake, rear-exhaust arrangement, closing unused front spaces can help prevent exhaust recirculation.

Blocking a rear opening changes the exhaust side instead and could be unhelpful if that space is part of the hot-air escape path.

Treat front and rear airflow separately.

It depends on the rack width.

The 10" 1U plate is supplied with four M6 rack screws.

The 19" 1U, 2U and 3U plates are supplied without rack fixings.

No fixings are supplied with the 19" plates, so use fixings appropriate to your rack rails.

On a normal square-hole rack using M6 cage nuts, that means the corresponding cage nuts, rack screws and washers.

Each blanking plate has four rack-mounting slots.

Use the intended mounting points so the plate sits squarely and does not flap about.

Yes, provided the rack space itself is free and you can reach the mounting points.

The neighbouring equipment does not normally need to come out.

No. It is a shallow front-mounted panel, not a shelf or piece of equipment extending into the cabinet.

The rack ears provide the mounting it needs.

Adding rear support would be an impressively elaborate solution to a problem the plate simply does not have.

Functionally, very little if both arrangements cover the same 3U opening.

One 3U plate gives you fewer joints and fewer pieces of metalwork to remove.

Three 1U plates give you more flexibility if that space is populated gradually later.

It is mostly an exercise in convenience rather than competing schools of rack engineering.

Yes. For example, a 3U and 1U plate can cover a 4U opening, or two 1U plates can cover 2U.

Just make sure the total matches the unused rack space.

It measures approximately 485mm wide by 90mm high by 11mm deep overall.

Yes. They are a neat way to cover deliberately reserved U space until the future equipment arrives.

If the rack is likely to change frequently, several 1U blanks can be more adaptable than one large panel; if the layout is settled, a larger blank produces a cleaner expanse with fewer fixings.

A little, in the ordinary sense that it stops someone simply reaching through an unused front opening to touch cables or components behind it.

It is not a security enclosure or anti-tamper system.

Think discouragement of wandering fingers rather than fortification.

It can reduce the direct open path through that rack space, but it does not make the cabinet dustproof.

Air and dust can still enter through doors, vents, cable openings and other gaps.

Yes. If cables are visible through an unused rack space, a blank will cover the opening and stop them being casually reached from the front.

It does not replace proper cable management behind the panel.

No specific EMI or EMC shielding performance is claimed for these products.

They are solid steel rack blanks, but that alone should not be turned into a certified electromagnetic-shielding claim.

No. It is a blanking plate.

Do not load equipment onto it or turn it into an improvised shelf.

If you need to support something in the rack, use a rack shelf designed for the job rather than asking a flat panel to begin a second career.
